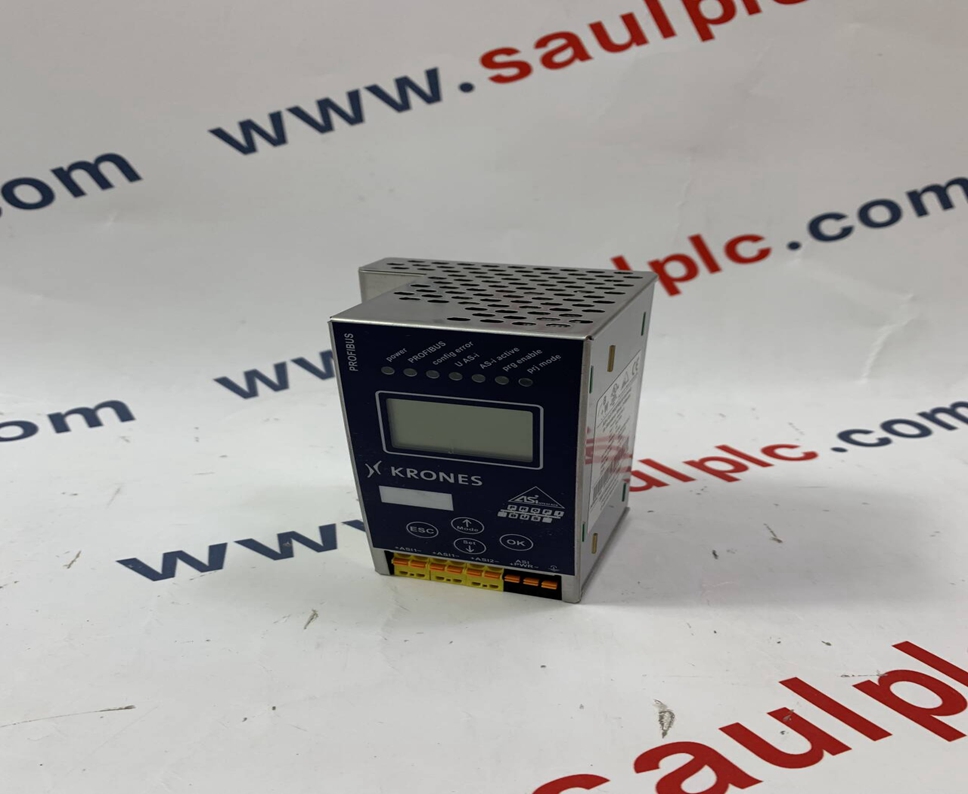

Bihl+Wiedemann BWU2234

Bihl+Wiedemann BWU2234 Product Details

The Bihl+Wiedemann BWU2234 is an AS-i 3.0 PROFINET Gateway. It serves as a communication interface between an AS-Interface (AS-i) network and a PROFINET network. This gateway allows seamless data exchange between AS-i slaves (sensors and actuators) and a PROFINET controller (PLC).

Product Parameters

• Type: PROFINET AS-i Gateway

• Model: Gateway

• Protection Rating: IP20

• Fieldbus Interface: PROFINET

• Number of AS-i Networks: 2

• Number of AS-i Masters: 2

• Power Supply for AS-i Networks: No, maximum 8 A/AS-i network, redundant supply

• Diagnostic and Configuration Interface: Ethernet fieldbus + RS232

• Recognition of Duplicate AS-i Addresses: Yes

• AS-i Fault Detector: Yes

• Programming in C: Optional

• Weight: Approximately 0.01 kg

• Dimensions: Approximately 88 mm x 88 mm x 88 mm

Product Advantages

• Seamless Integration: Enables easy connection of AS-i devices to PROFINET control systems.

• Dual AS-i Masters: Allows control of two independent AS-i networks with a single gateway, potentially reducing hardware costs.

• Redundant Power Supply: Offers increased system reliability by supporting redundant power supplies for the AS-i networks.

• Comprehensive Diagnostics: Features duplicate address recognition and an AS-i fault detector for simplified troubleshooting and maintenance.

• Flexible Configuration: Provides both Ethernet and RS232 interfaces for diagnostic and configuration purposes.

• Optional Programming in C: Offers advanced users the flexibility for custom application development.

Important Notes

• Ensure proper wiring and connections according to the Bihl+Wiedemann documentation.

• Pay attention to the maximum current rating of the AS-i power supplies (8 A per network).

• Refer to the PROFINET configuration guidelines for proper integration into the network.

• Consult the Bihl+Wiedemann software documentation for detailed information on diagnostics and configuration.
